Long-range Wiegand Data Interpreters

Specifications & Capabilities


Powering the Device

The PPE Long-range Wiegand Data Interpreters come fully assembled and ready for use. Simply connect your power source (12VDC recommended) to the 5.5 × 2.1 mm male barrel connector. Once power is supplied, the reader and Doppelgänger firmware will automatically boot.

⚠️

Warning: Do not supply more than 12VDC to the Doppelgänger RFID Development Board. Overvoltage may result in overheating or fire. We will not replace any board damaged due to improper wiring or voltage misuse. As the user, you assume all risks when operating the Doppelgänger RFID Development Board.

Configuring the Device

To configure the device, follow the instructions provided in the Doppelgänger Core Guide.

Internal Wiring Diagrams

The following diagrams illustrate the internal wiring for the iCLASS R90SE and MaxiProx 5375 readers:

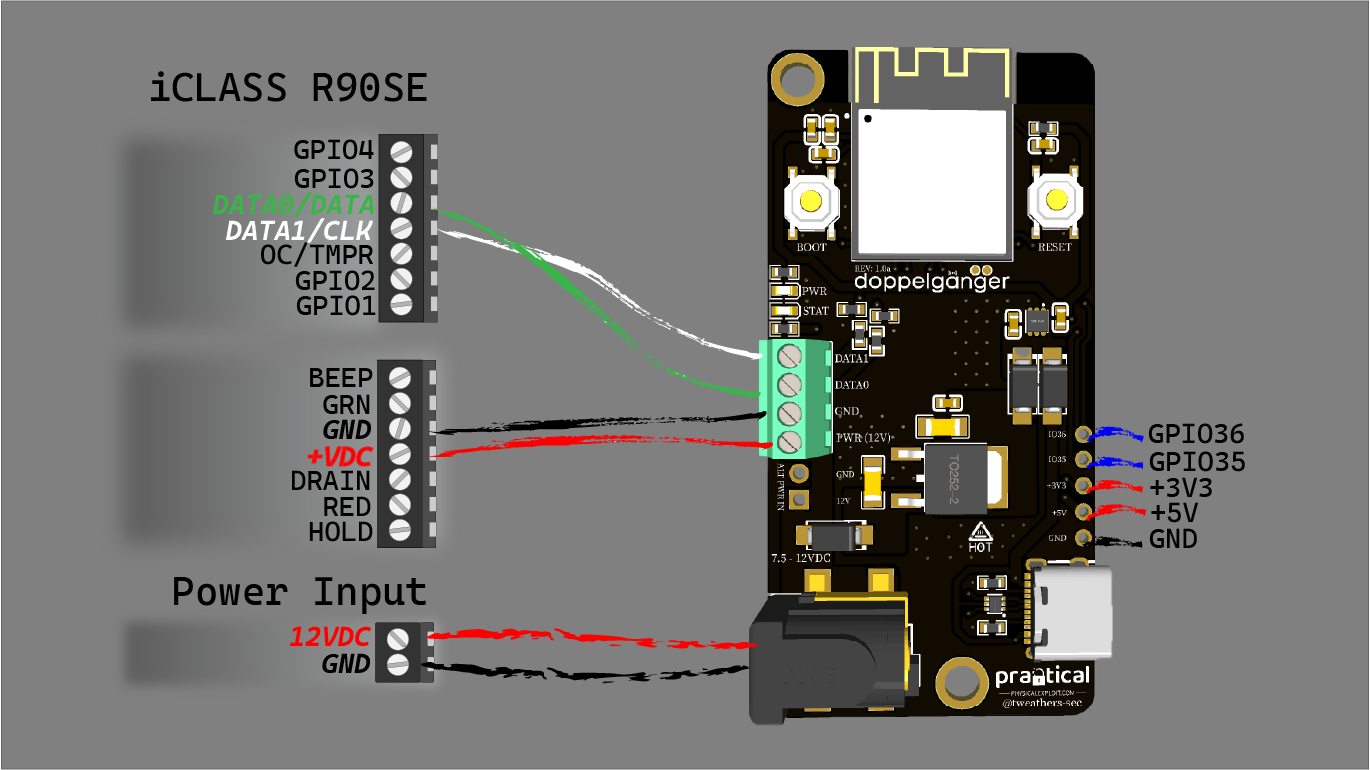

R90SE

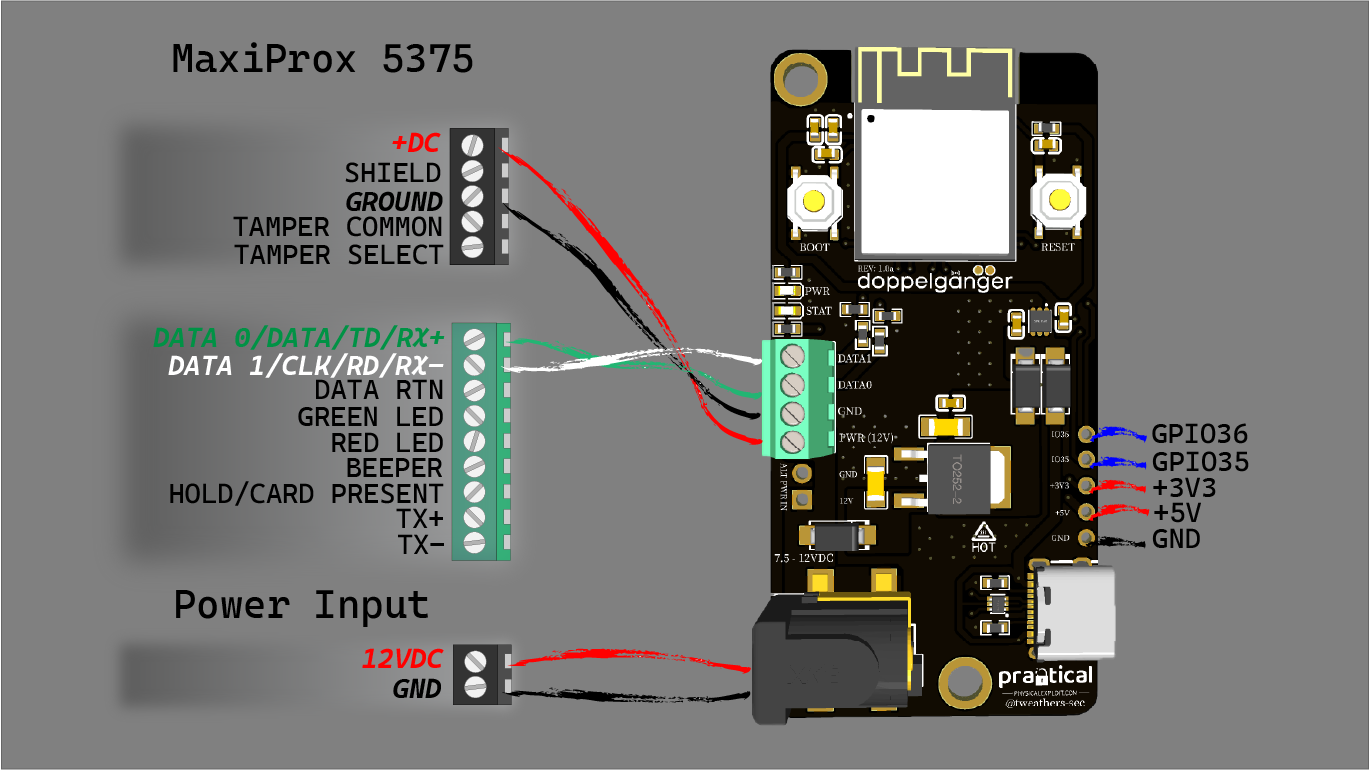

MaxiProx 5375

Firmware & Flashing

For instructions on flashing firmware, refer to the Flashing & Updating section of the documentation.
